Nhông xích Shimano CN-6701 được thiết kế cho hệ truyền động 2×10 cấp. Nhờ các tấm bên ngoài được tối ưu hóa, nó mang lại hiệu suất được cải thiện cho xe đạp Đường trường, trong khi vẫn giữ nguyên độ bền và trọng lượng (so với CN-6700). Công nghệ HG đảm bảo tiếp xúc tối ưu với dây xích và răng cassette và do đó chuyển dịch trơn tru. Thận trọng, CN-6701 là định hướng, phải được quan sát trong quá trình lắp đặt.
Thông số kỹ thuật:
Ứng dụng: Đường
Bánh răng: 10 tốc độ

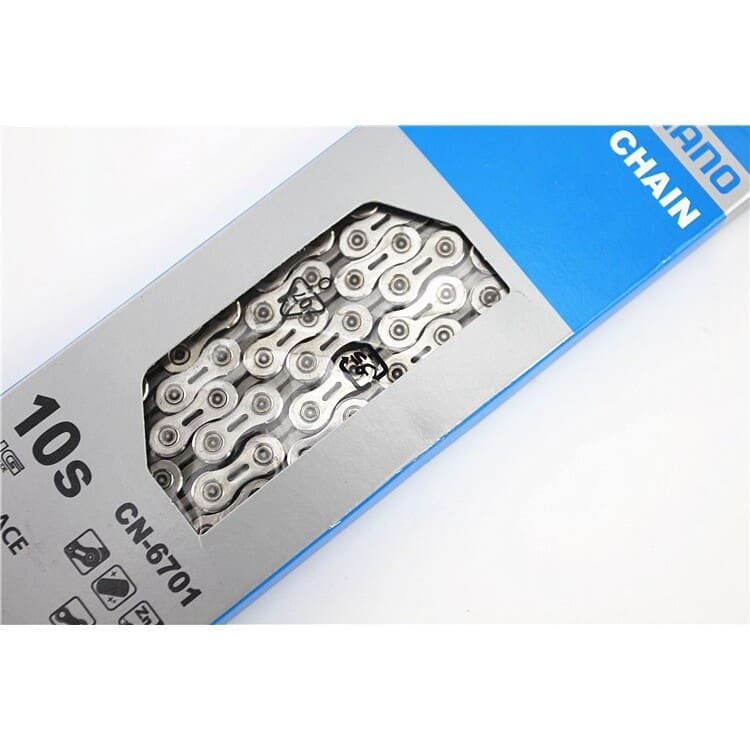

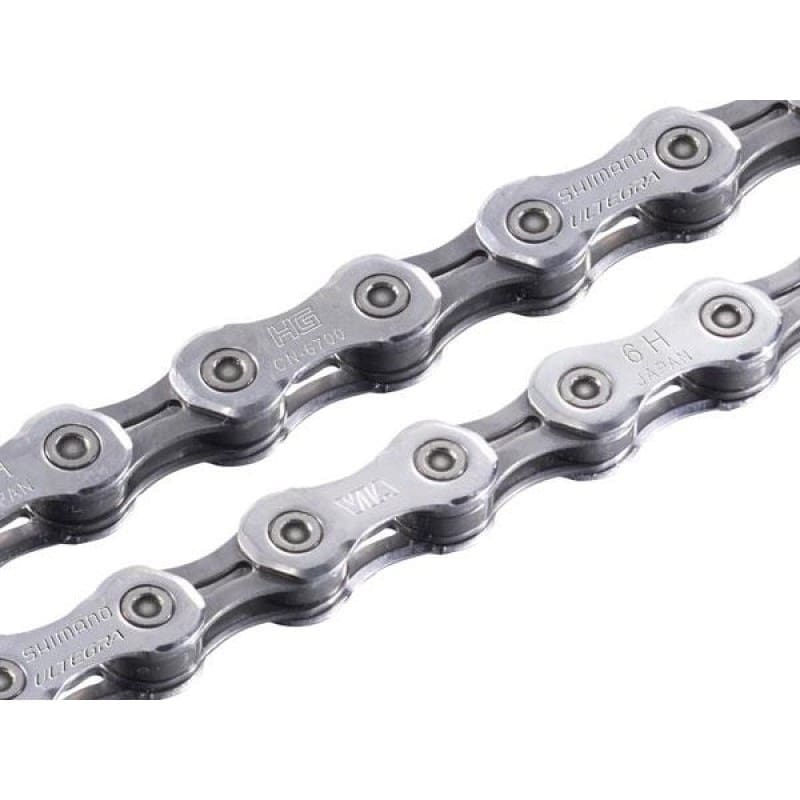

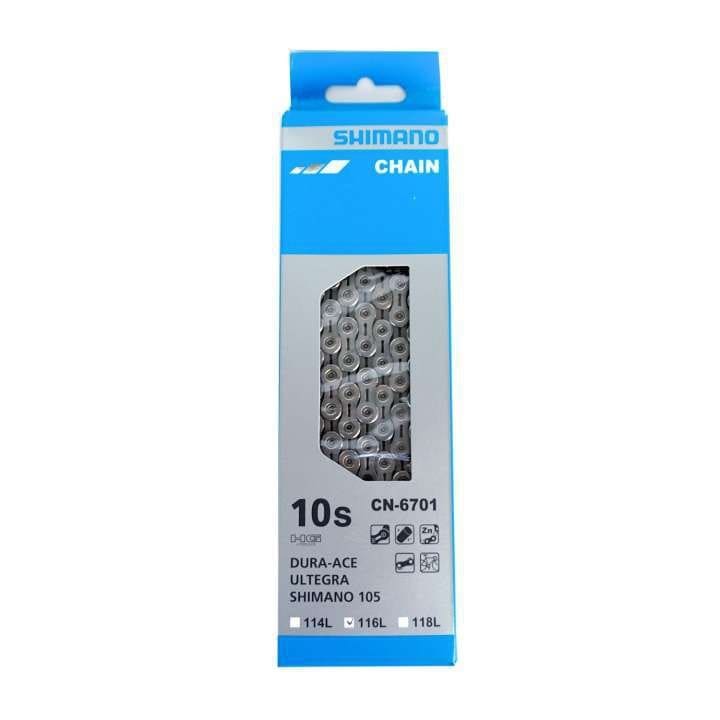

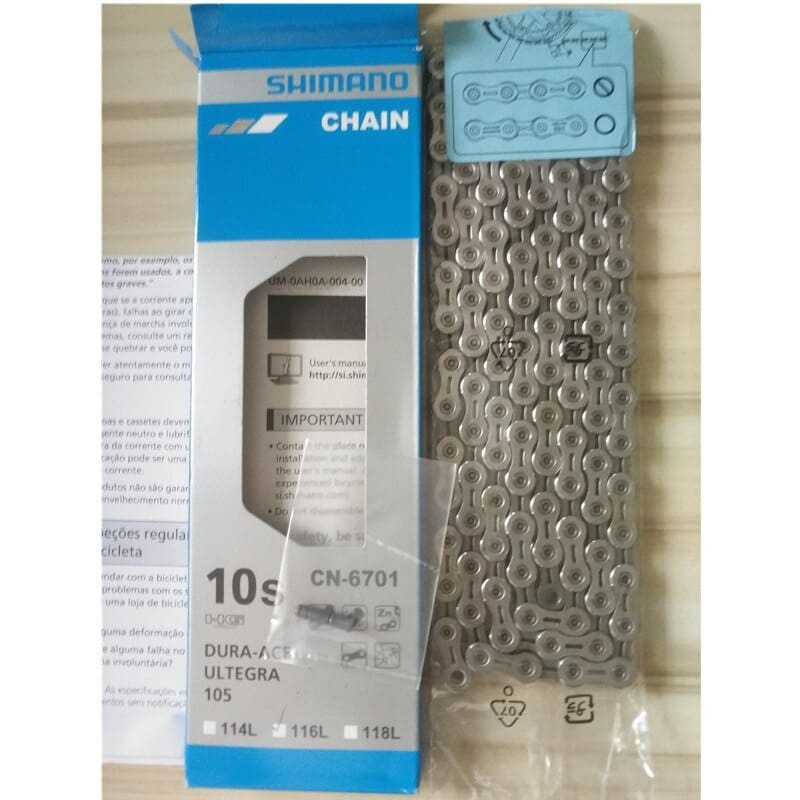

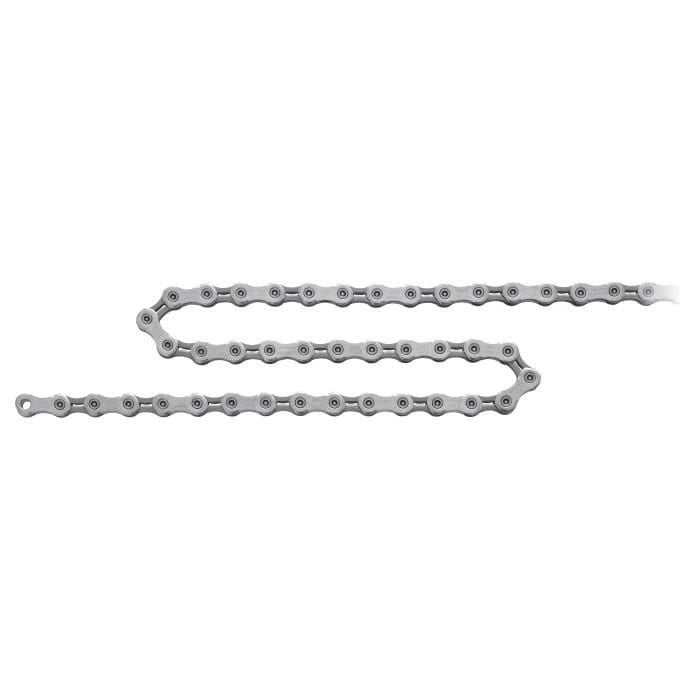

The Shimano CN-6701 chain is designed for 2×10-speed drivetrains. Thanks to optimised outer plates, it delivers improved performance for Road bikes, while maintaining the same durability and weight (compared to the CN-6700). The HG technology ensures optimised contact to the chainring and cassette teeth and therefore smooth shifts. Caution, CN-6701 is directional, which must be observed during installation.
Specifications:
Application: Road
Gearing: 10-speed
Technical Information:
Number of Links: 114
Closure Type: chain pin with double ring (ampoule type)
Pin Type: chromium-plated, solid
Directional: yes
Recommended Groupset: Dura Ace 7900, Ultegra 6700, 105 5700
Material: steel
Features:
– super slim HG 10-speed chain for all Shimano 2×10-speed Road bike drivetrains
– optimised outer plates (zinc-aluminium-coated) for smooth shifting and less chain jamming in front
– optimised inner plates (grey) for smoother rear shifting
– perforated, ultralight plates
– less stress when shifting under load
– smooth shifting even under high load
– improved press-fit construction for stable shifting
– performance indicator: advanced (level 2 out of 3)
Technology:
HG
The inner outer plate of the HG chains, designed for better contact with gear teeth, allows smooth shifting even under high load conditions. In addition, the chain has achieved a higher pedalling efficiency. They are perfectly matched to HG sprockets to ensure quick shifting.
Directional
This chain has an asymmetrical design. The specially formed plates optimise the engagement on the sprocket and result in even smoother shifts, even under load. The inner side is optimised for rear HG (Hyperglide) shifting and ensures fast and smooth shifting. The outer side is optimised for chain ring switches. The sides are marked to ensure a correct mounting. The marked side is the outer side.
Warning notice: The high shifting performance can only be reached if the chain is mounted correctly. Should the chain be installed the wrong way, the chain could derail and lead to serious injury.
—————————-
